YJJ SSCDLNN100MDSA5 Single-power 3.3Vdc Absolute Pressure 30psi Pressure Sensor

Brand Name : HONEYWELL

Model Number : SSCDLNN100MDSA5

Place of Origin : USA

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500

Delivery Time : 5-8 days

Packaging Details : Plate serving

Working pressure : 0 psi to 30 psi

Interface type : I2C

Working power supply voltage : 3V

Port type : Manifold

Resolution : 12 bits

Packaging/Box : SMT-8

Contact Now

Product Description:

SSCDLNN100MDSA5 Differential Pressure ±100mbar Digital SPI Pressure Sensor

Features:

Standard precision silicon ceramic (SSC) series is a piezoresistive silicon pressure sensor that offers proportional analog or digital output for providing pressure readings over a wide full-scale pressure span and temperature range.

SSC series can perform comprehensive calibration and temperature compensation for sensor zero position, sensitivity, temperature coefficient and nonlinearity by using application-specific integrated circuits on the circuit board. Update the calibrated analog output values and digital output values at rates of approximately 1 kHz and 2 kHz respectively.

Calibrate the SSC series within the temperature range of -20 °C to 85°C [-4 °F to 185°F]. Feature of this sensor is that it can operate under a single power supply condition of 3.3Vdc or 5.0Vdc.

These sensors can measure absolute pressure, gauge pressure or differential pressure. The absolute pressure sensor uses vacuum pressure as the internal reference value, and its output value is proportional to the absolute pressure. The gauge pressure type sensor takes atmospheric pressure as a reference and provides an output value proportional to the difference from the atmospheric pressure. The differential pressure sensor can measure pressure between two pressure ports.

TruStability The pressure sensor is designed to be used in conjunction with non-corrosive and non-ionic gases, such as air and other dry gases. The performance of these sensors can be extended to a pressure range above 40 mbar, 4 kPa, and 20 inH2O through a rich array of options.

All products are designed and manufactured in accordance with the 9001 standard.

Pressure range

±1.6 mbar to ±10 bar, ±160 Pa to ±1 MPa, ±0.5 inH20 to ±150 psi

Pressure type: Absolute

Working pressure: 0 psi to 30 psi

Accuracy: 0.25%

Output type: Digital

Installation style: SMD/SMT

Interface type: I2C

Working power supply voltage: 3 V

Port type: Manifold

Resolution: 12 bits

Packaging/Box: SMT-8

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

Series: SSC

Packaging: Bulk

Trademark: Honeywell

Working power supply current: 1.6 mA

Product type: Board Mount Pressure Sensors

50

Subcategory: Sensors

Power supply voltage - Maximum: 3.3V

Power supply voltage - minimum: 3 V

Trademark name: TruStability

Unit weight: 3.200 g

Specifications:

Working power 0 psi to 30 psi
Accuracy 0.25%
Output type Digital
Installation style SMD/SMT

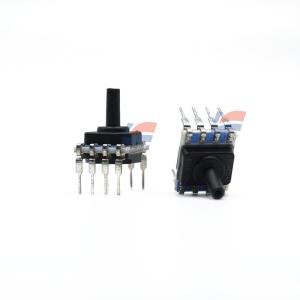

YJJ SSCDLNN100MDSA5 Single-power 3.3Vdc Absolute Pressure 30psi Pressure SensorYJJ SSCDLNN100MDSA5 Single-power 3.3Vdc Absolute Pressure 30psi Pressure SensorYJJ SSCDLNN100MDSA5 Single-power 3.3Vdc Absolute Pressure 30psi Pressure SensorYJJ SSCDLNN100MDSA5 Single-power 3.3Vdc Absolute Pressure 30psi Pressure Sensor
